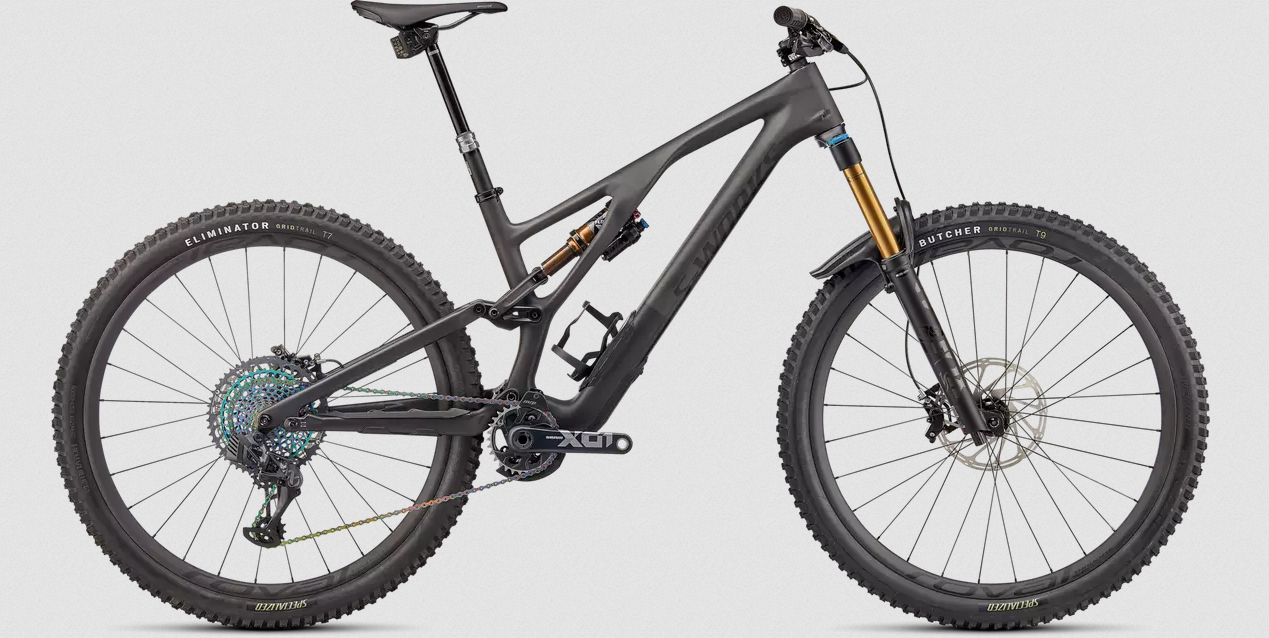

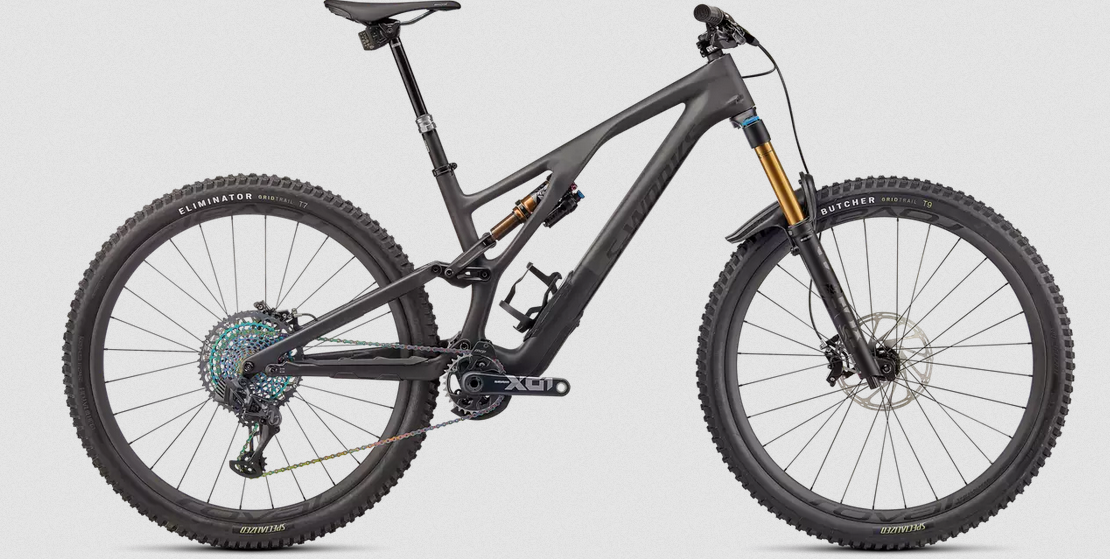

S-Works Stumpjumper Evo

Antrieb

INNENLAGER: SRAM DUB, BSA 73mm, Threaded

SCHALTHEBEL: SRAM Eagle AXS Rocker Paddle

KURBELGARNITUR: SRAM X01 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm

KETTE: SRAM XX1 Eagle

SCHALTWERK: SRAM XX1 Eagle AXS

KASSETTE: Sram XG-1299, 12-Speed, 10-52t

KETTENBLÄTTER: Alloy, 30T

Rahmenset

SWAT: Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder

SATTELSTÜTZKLEMME: Alloy, 38.6mm

RAHMEN: FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

GABEL: FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

DÄMPFER: FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm

Bremsen

BREMSE VORNE: SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm

BREMSE HINTEN: SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm

Laufräder

VORDERREIFEN: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.3″

SPEICHEN: DT Competition Race

HINTERREIFEN: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29×2.3″

FELGEN: Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h

HINTERRADNABE: Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing

VORDERRADNABE: Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing

SCHLÄUCHE: Standard, Presta Valve

Cockpit

SATTEL: Bridge, 155/143mm, Hollow Ti-rails

VORBAU: Deity, 35.0mm

LENKERGRIFFE: Deity, Knuckleduster, Black

SATTELSTÜTZE: RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

LENKER: Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
